Description

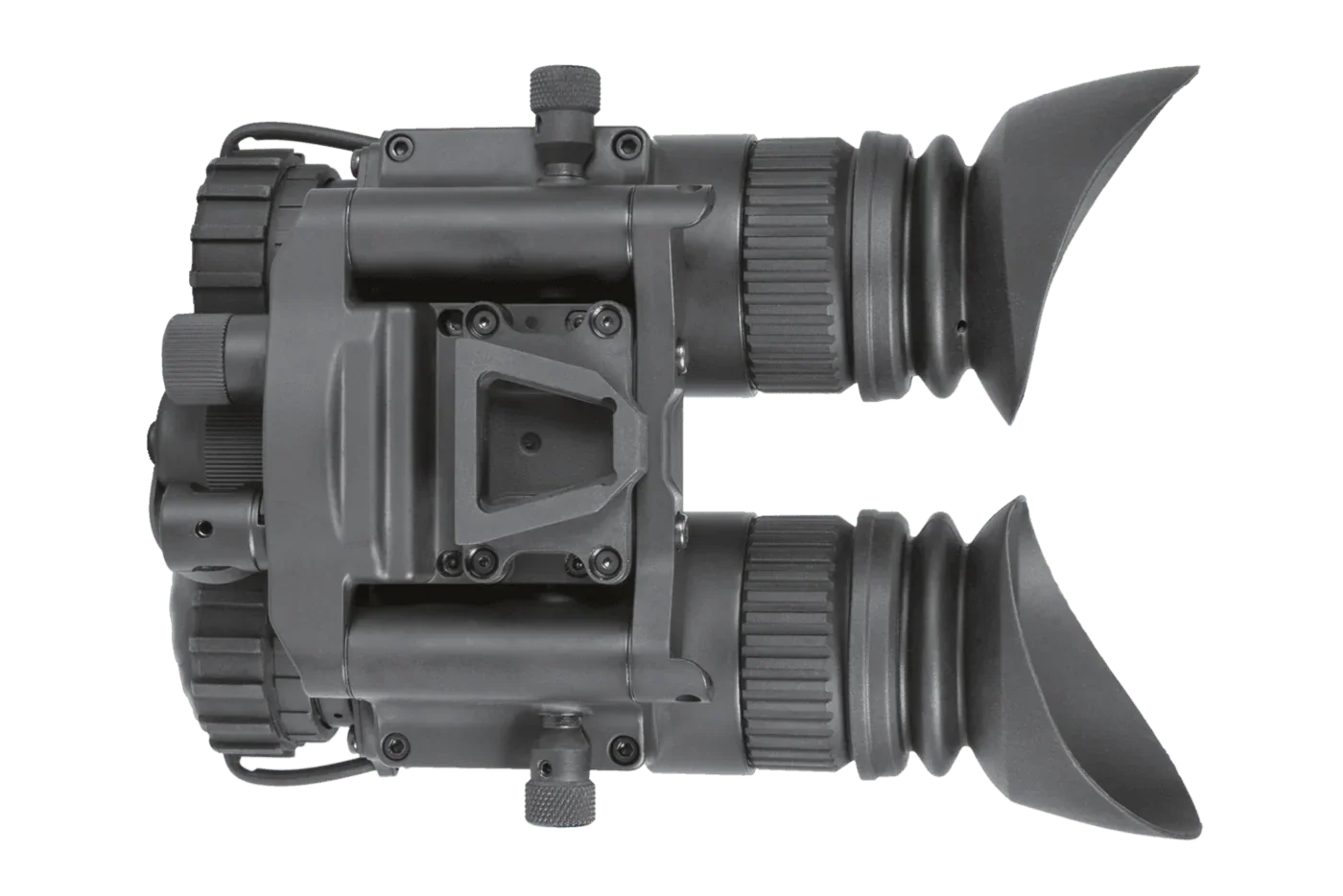

4 barrel night vision goggles AGM NVG-40 NL1 Dual Tube Night Vision Goggle/BinocularAGM NVG 40 NL1 Night Vision Goggles Binocular Dual Tube Gen 2+ "Level 1" 14NV4122483011 The AGM NVG 40 is a dual channel night vision system housed in a compact, durable composite shell and equipped with advanced multi coated optics. It offers the option of a Gen 2+ or Gen 3 high performance image intensifier tube (IIT) for enhanced image clarity. To protect the high quality photocathode tube, the NVG includes a bright light cut off feature. With
AGM NVG-40 NL1 Night Vision Goggles/Binocular Dual Tube Gen 2+ "Level 1" 14NV4122483011
The AGM NVG-40 is a dual-channel night vision system housed in a compact, durable composite shell and equipped with advanced multi-coated optics. It offers the option of a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT) for enhanced image clarity. To protect the high-quality photocathode tube, the NVG includes a bright light cut-off feature.
With Manual Gain Control, users can adjust image brightness to achieve optimal quality, even in fluctuating light conditions. The NVG operates on either a single AA alkaline battery or a CR123A battery, offering up to 20 hours of continuous use. Additionally, it features a built-in infrared illuminator for reading or close-range tasks in complete darkness.
NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
AGM NVG-40 NL1 Features:
- Redundant dual-tube design
- True stereoscopic vision
- Lightweight & compact
- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- Limited 3-year warranty
|
Gen2+ Lvls |
NL1/NW1 - Gen2+ Lvl1 |
NL2/NW2 - Gen2+ Lvl2 |
NL3 - Gen2+ Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gen3 Lvls |
3NL1/3AW1 - Gen3 Lvl1 |
3NL2/3AW2 - Gen3 Lvl2 |
3NL3/3AW3 - Gen3 Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|
|
|
|
|
|
|
|
|
AGM NVG-40 NL1 Specifications:
Image Intensifier Tube
Gen 2+ "Level 1"
Resolution
51-64 lp/mm
Field of view cleanness by zone
Gen 2 IIT NL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
Magnification
1x
Lens System
27 mm, F/1.3
FOV
40°
Focus Range
0.25 m to Infinity
Eye Relief
25 mm
Diopter Adjustment
-6 to +2 dpt
Led Indicators
Low Battery IR On Excessive Light Conditions
Infrared Illuminator
Yes; Two power levels
Manual Gain Control
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)
Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
645 g (1.42 lbs)
Overall Dimensions
115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)
Package Includes:
- NVG Interface Shoe
- Bayonet/Horn Interface Shoe
- Demist Shield (2)
- Sacrificial Window
- Soft Carrying Case
- Lens Tissue
- Packing Box
- Battery Adapter
- User Manual
